90 kW Bus Project
สินค้าของเรา
Recognized Performance
Product Application
40kW mini-bus Project
25KW Mini-truck Project.

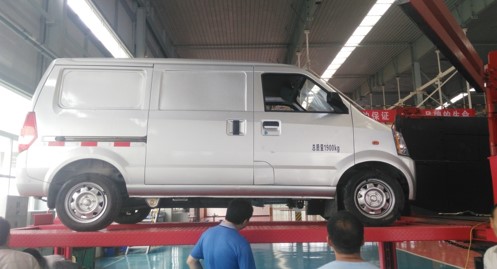

18KW Logistic Van Project.

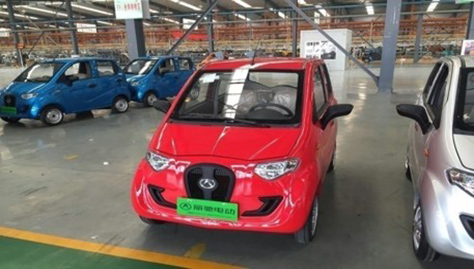

15KW Passenger Vehicle

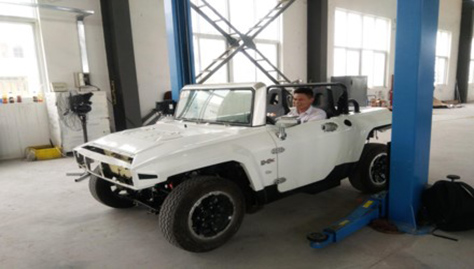

17KW Medium Speed Vehicle
4KW Low Speed Vehicle Project
1.5KW Electric Pallet Project

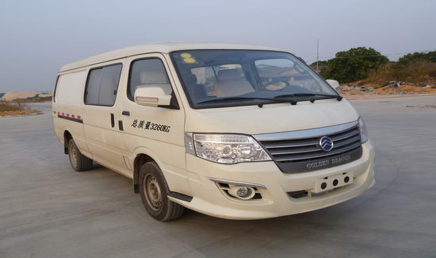

Ton Light Truck Specification
| Vehicle Type | Van |
| Truck Length | 5.995m |
| Truck Width | 2.25m |
| Truck Height | 3.07m |
| Total Weight | 4.49 ton |
| Rated Loading Weight | 1.375 ton |
| Vehicle Weight | 2.985 ton |
| Max. Speed | 80km/h |
| Max. House Power | 136 HP |
| Motor Rated Power | 50kW |
| Motor Peak Power | 100kW |
| Motor Max. Torque | 750N·m |
| Motor Max. Torque | 265N·m |
| Tier Spec. | 6.50R16LT |
| Cooling Method | Liquid cooling |
Refer to Dayun Moter E3 Mini Trick

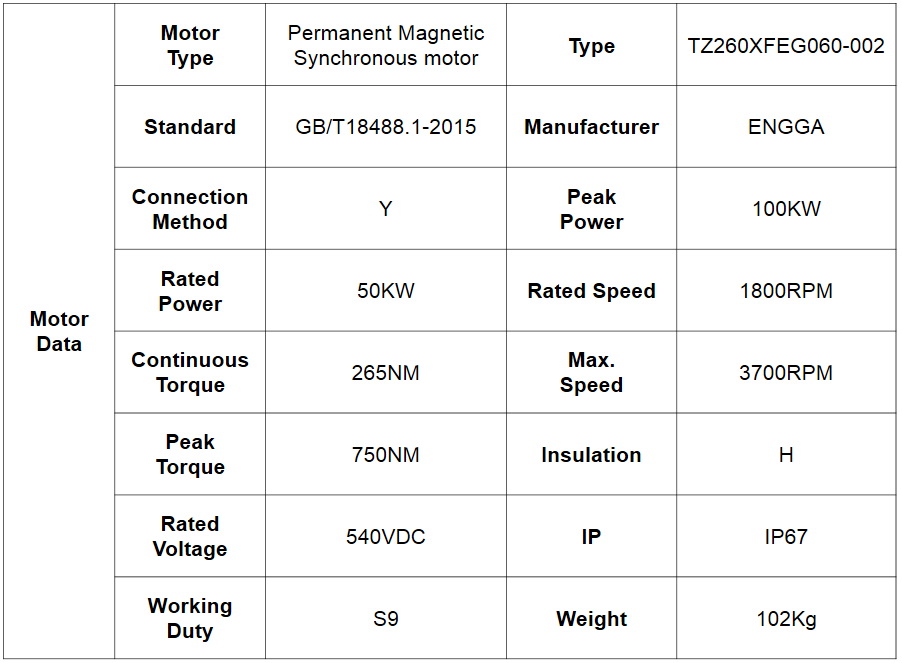

Drive Motor Design Data

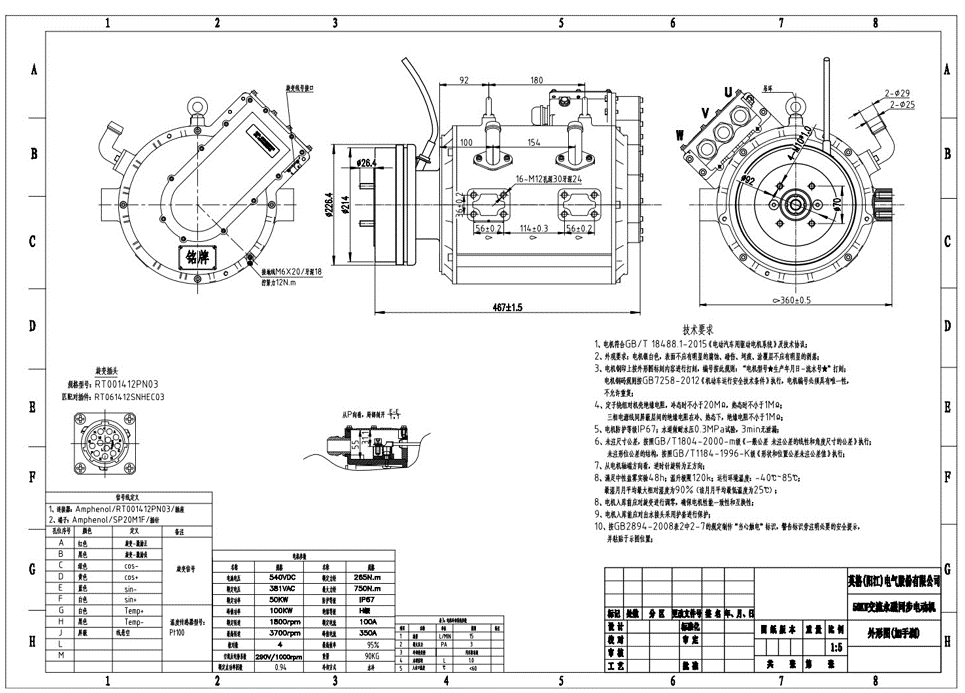

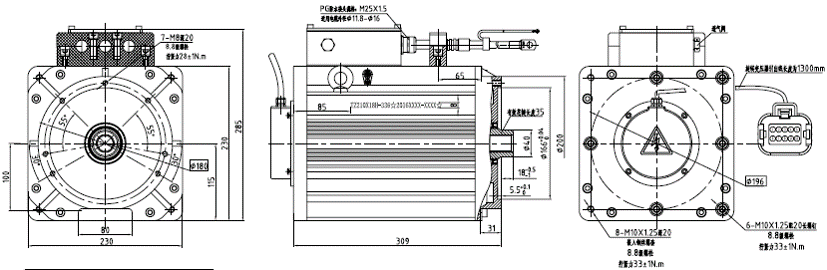

Drive Moter 2D Design

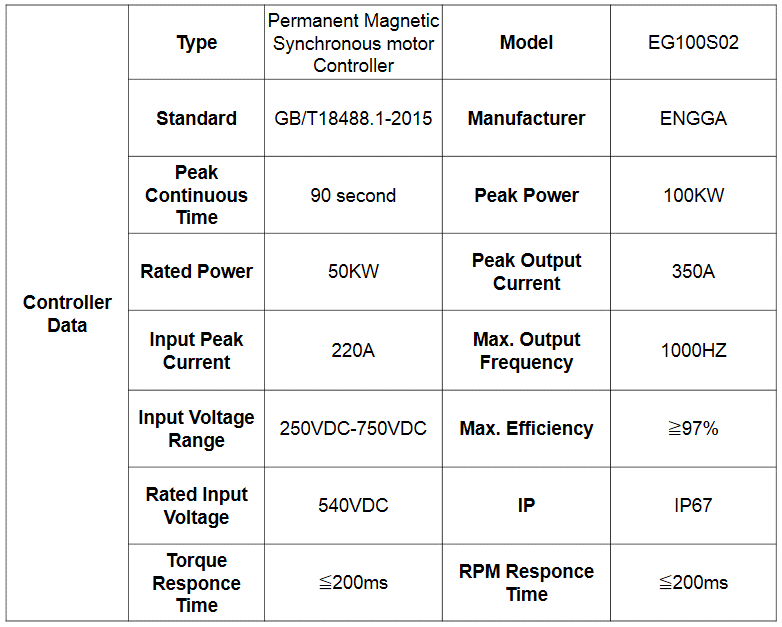

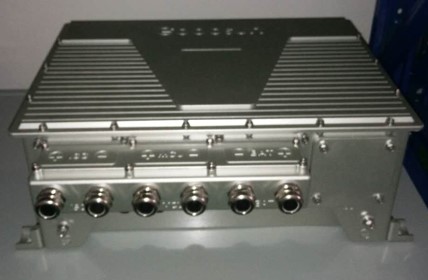

Controller Design Data

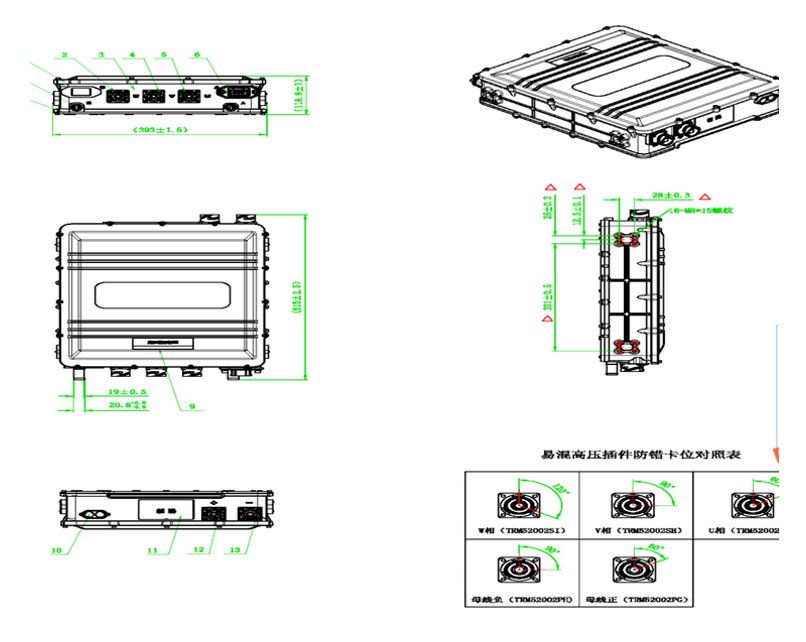

Controller 2D Structure

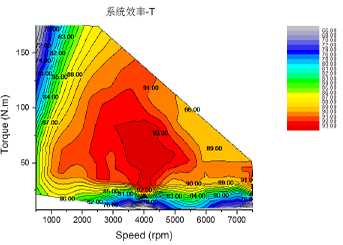

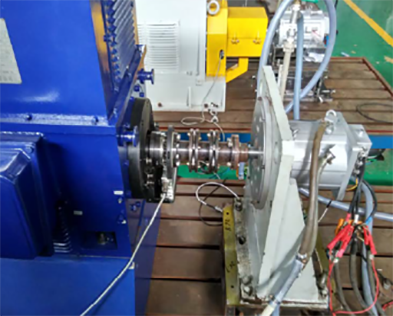

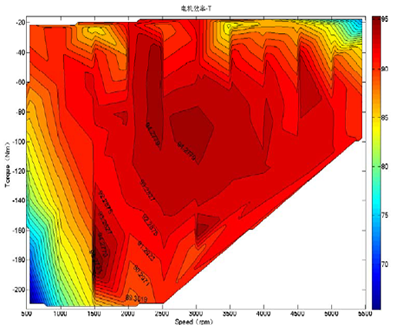

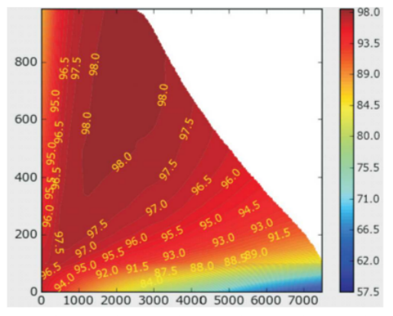

Analyzing Data MAP Reference
| Max. Efficiency | 97% |
| Max. Torque | 750NM |
| Max. Speed | 4000RPM |
| Rated Power | 50KW |
| Peak Power | 100KW |

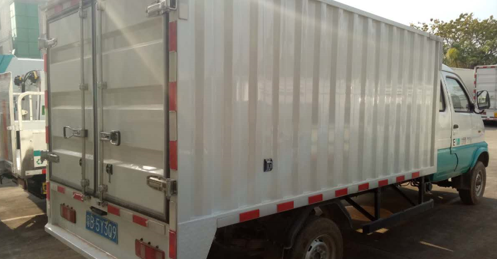

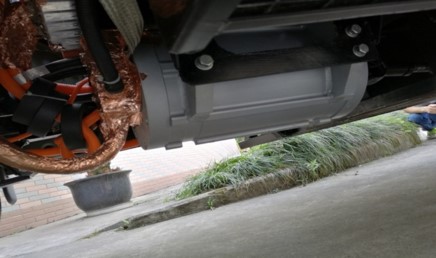

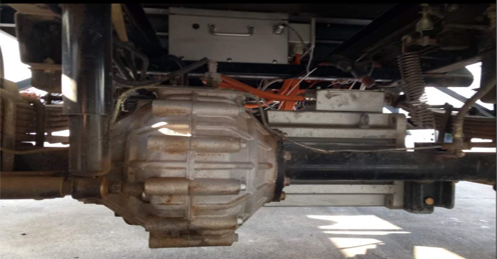

2.5 Ton Mini Truck Project
2.8ton 25KW motor direct drive permanent magnetic motor system; Vehicle Speed: 85km/h; Biggest continue voyage course: 200KM
2.3ton 8KW manual drive permanent magnetic motor system; Vehicle Speed: 80km/h; Biggest continue voyage course: 220KM

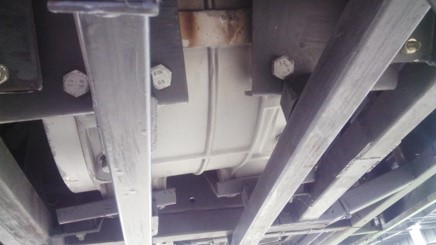

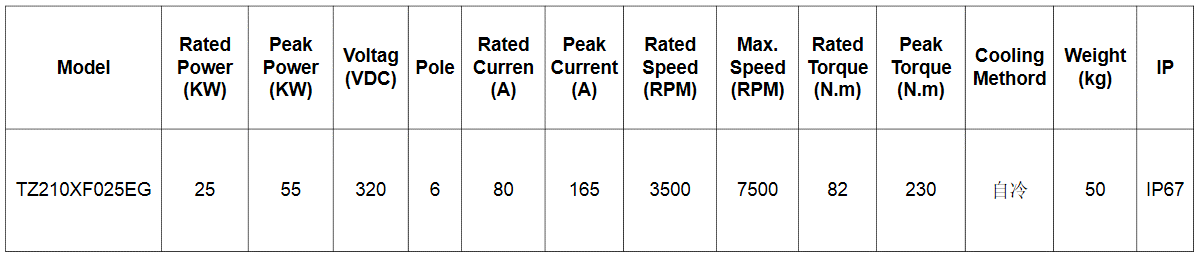

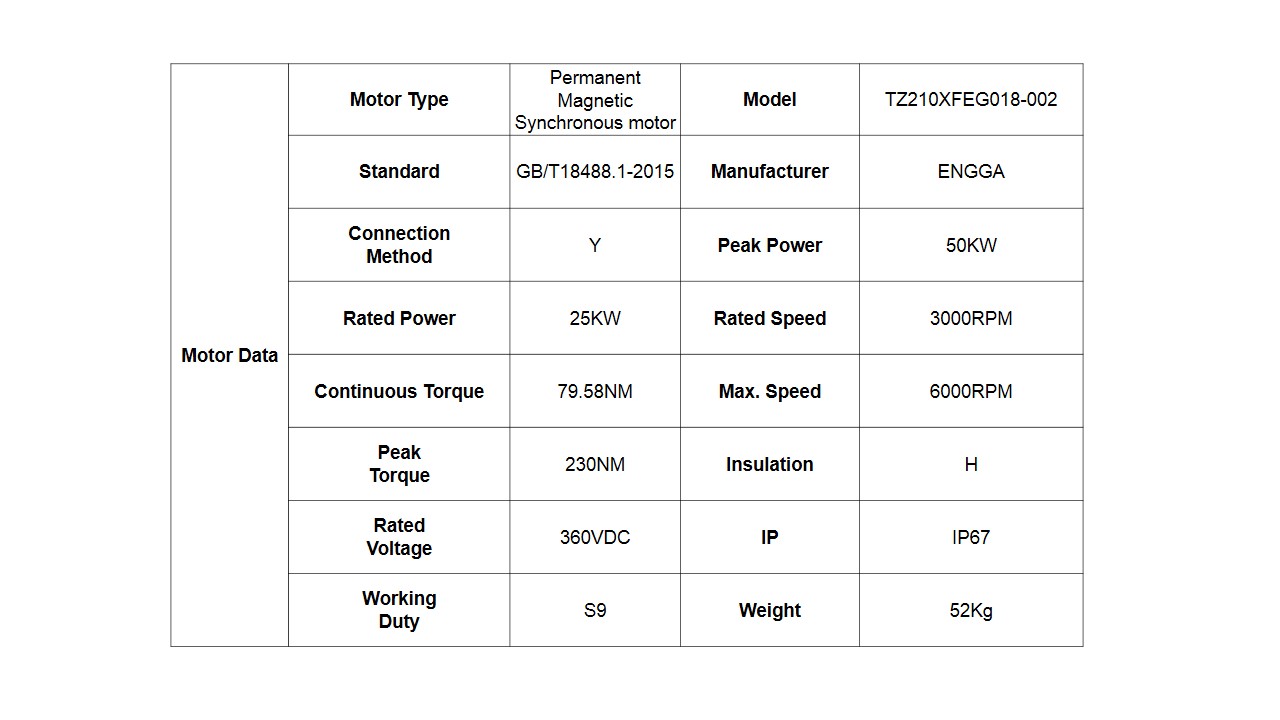

Drive Motor Design Data
25kW Liquid Cooling Motor Structure

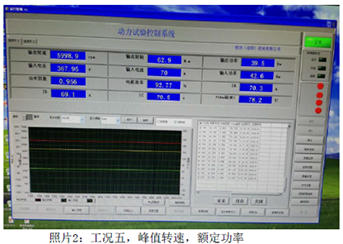

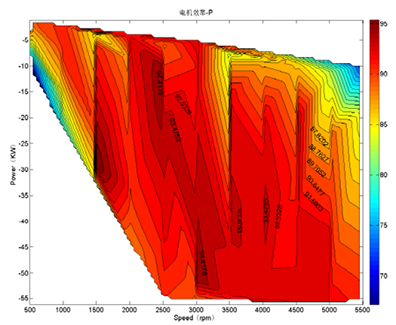

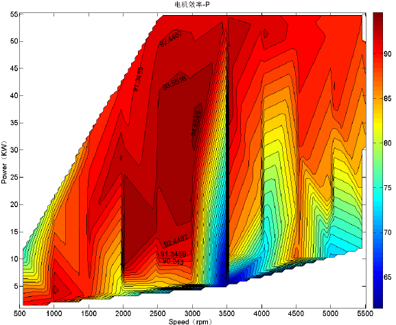

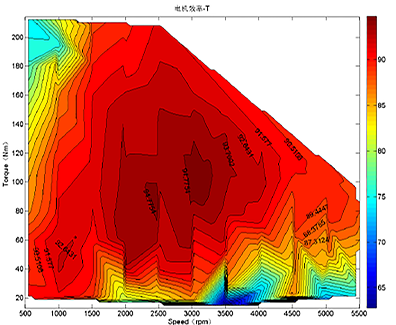

Analyzing Data MAP Reference
